Vincent MPH
Riley inspired Rag Top

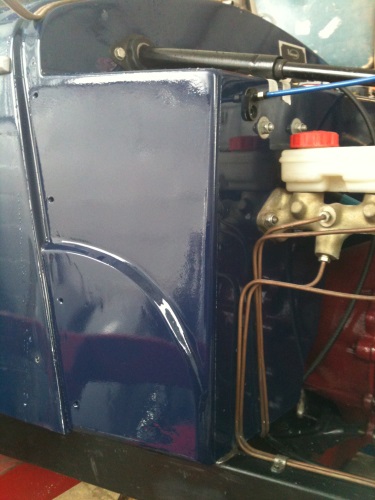

“Wider Foot well”

We can widen your foot well and give you about 3/4" more space.

This modification has been incorporated since 2013.

1984 Similar to the Original Martin Vincent Brooklands (No Doors)

Earlier Vincent models were either Brooklands (cycle wing) or MPH (full wings with running boards) models.

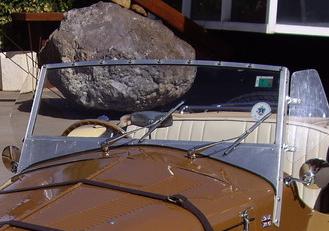

1984 – 1987 Vincent MPH, Screen

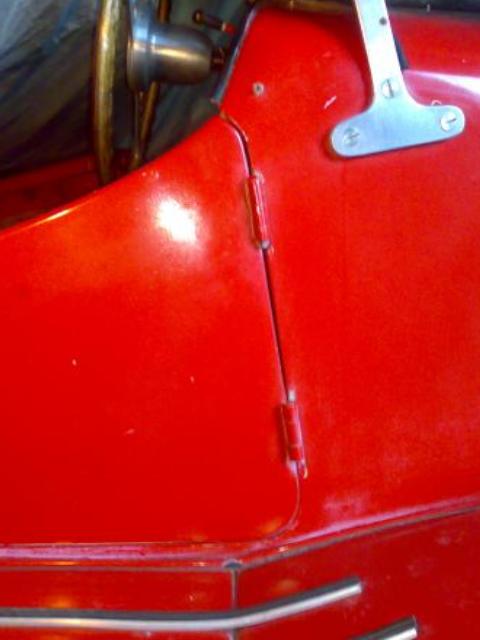

1984 – 1987 Vincent MPH, Doors, short opening.

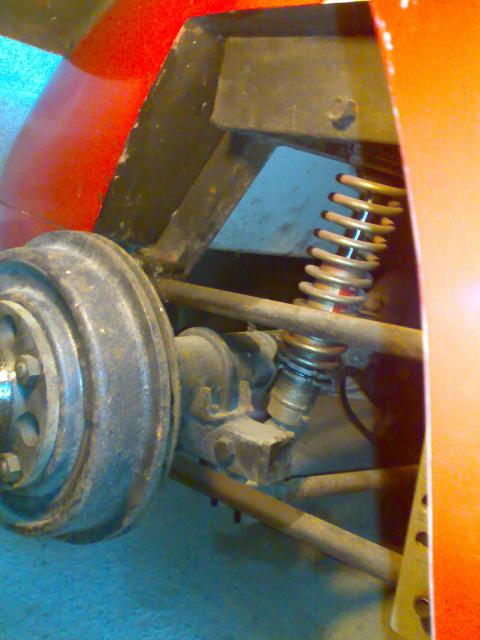

1984 – 1987 Vincent MPH, Suspension, Mk1 & Mk2, easily recognized by the 4 “EQUAL” length rear trailing links as opposed to the Mk3 with “UnEqual” length links, the lower link became twice as long as the top link. Other geometry changes were also included, not visible here.

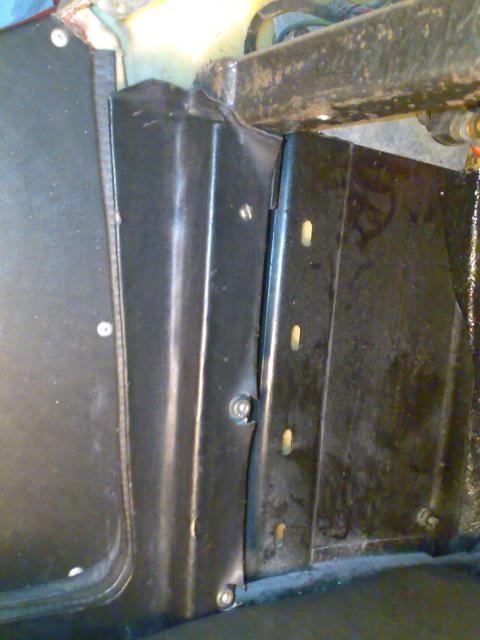

1984 – 1987 Vincent MPH, side impact and steering support, “Square Tube”.

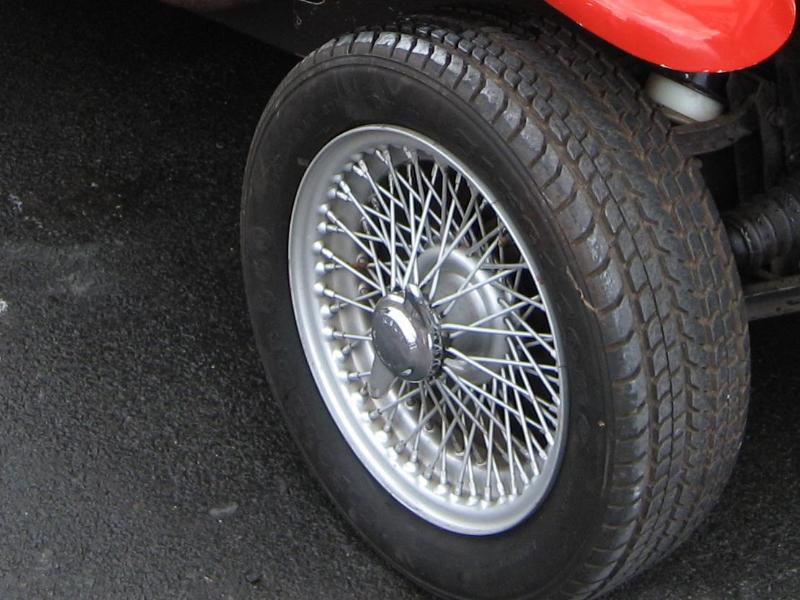

Upto – 1987 Vincent MPH, heavy 195 x 15″ wheels were fitted.

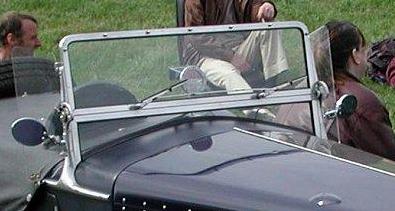

1987 – 2010 An attractive Riley replica folding screen with Aero screens.

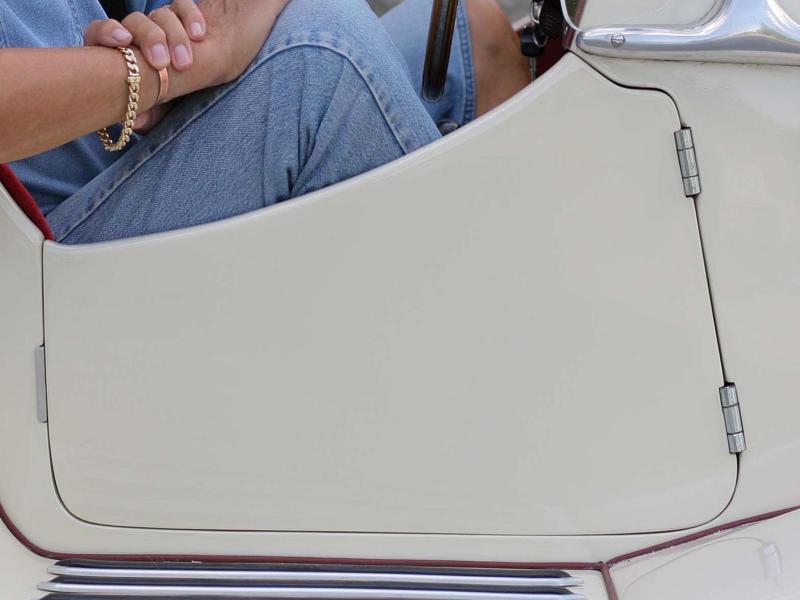

1987 – 2010 Doors extended forwards for easier access.

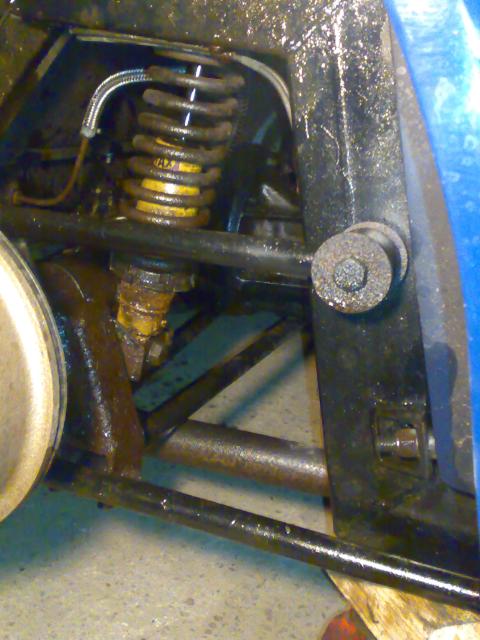

1987 – 2010 Suspension, The front and the rear suspensions were changed significantly to improve the handling characteristics. “UnEqual” length links, the lower link became twice as long as the top link.

Other geometry changes were also included, not visible here. 40mm diameter rubber bushes, improved flexibility.

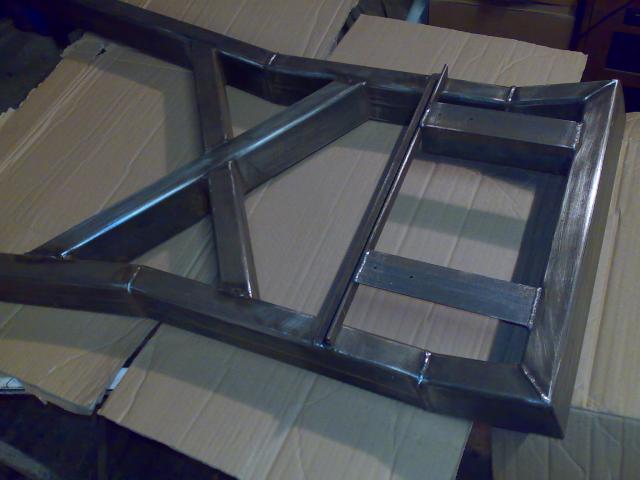

1987 – 2010 Chassis, this had considerable stiffening improvements made, easily recognised by the “X” member underneath the radiator in front of the engine, just lift the bonnet.

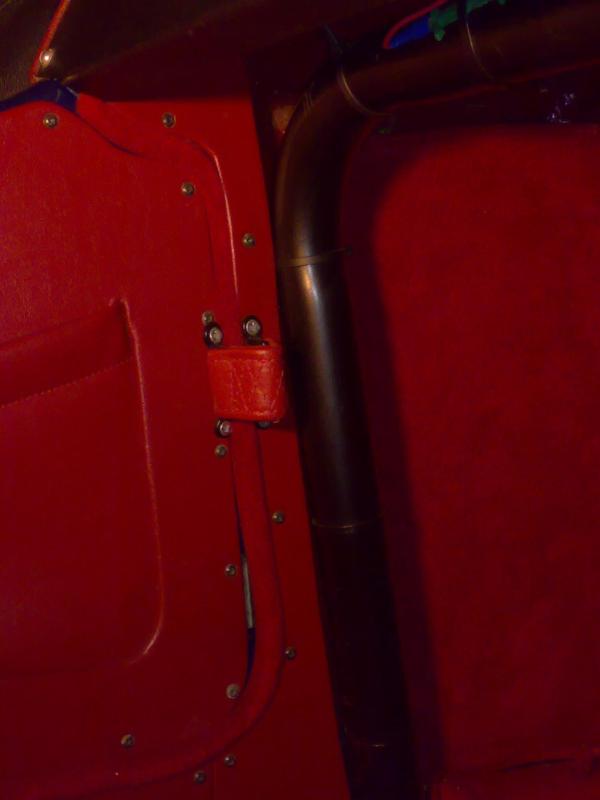

1987 – 2010 Side impact and Steering support,”Round Tube”.

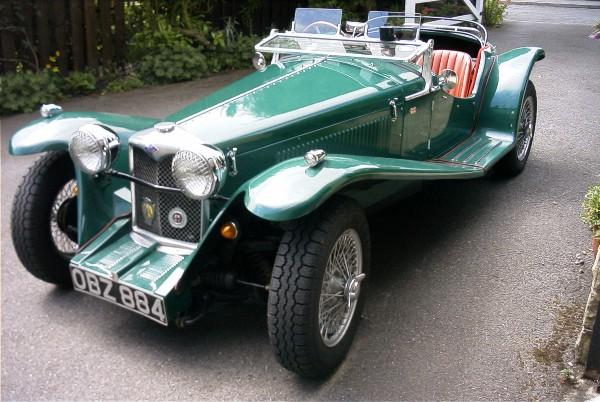

1987 – 2010 Wheel Sizes were changed to 165 x 15″, a lighter wheel, improved handling and looks

The improvements result in a better handling & more agile motorcar. If you would like some advice or opinions about the cars please contact us. The dates and timing of the changes are not exact as some earlier cars received updates occasionally.
